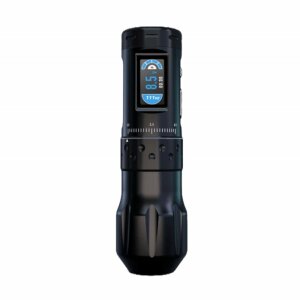

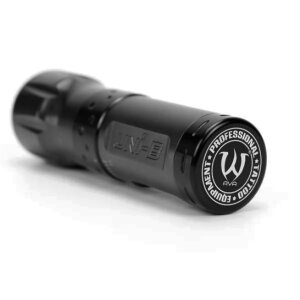

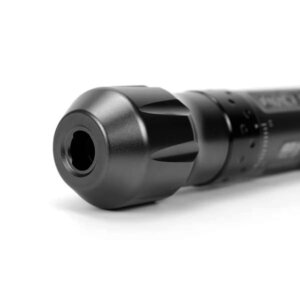

AVA UNI B 2.5 - 4.5mm
The AVA UNI B is a state-of-the-art, cordless tattoo machine designed to offer the discerning tattoo artist maximum flexibility and control. With a continuously adjustable stroke from 2.5mm to 4.5mm, precise voltage adjustment and an integrated timing function, the UNI B sets new standards in terms of performance and user-friendliness.

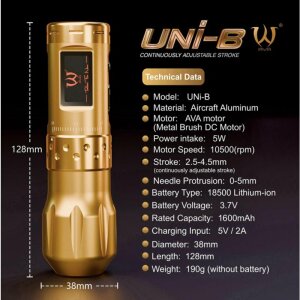

Technical specifications:
•Material: Aircraft aluminum
•Stroke: Continuously adjustable from 2.5mm to 4.5mm
•Time function:◦Starts timing when switched on and saves the data even when changing the battery.
◦Reset timing by pressing the "+" and "-" buttons for 3 seconds.
•Voltage adjustment: Two adjustment methods:◦Pressing the "+" or "-" button: Increase or decrease the voltage by 0.1V.
◦Hold the "+" or "-" button: Increase or decrease the voltage by 1V.
•Motor: AVA Motor (metal brush DC motor)
•Motor speed: 10500 rpm
•Battery: Replaceable 18500 lithium-ion battery
•Battery voltage: 3.7V
•Power consumption: 5W
•Needle protrusion: 0-5mm
•Charging input: 5V/2A
•Pen net weight: 190g (without battery)
•Pen size: 128mm * 38mm (grip size)
•Working time: 6-8 hours
Advantages:
•Continuously adjustable stroke: From 2.5mm to 4.5mm, without restrictions. Allows precise adjustments for different tattoo techniques.
•Built-in time measurement function: Track your working time precisely, even when changing batteries.
•Replaceable 18500 lithium-ion battery: With improved circuit protection that protects the circuit board even if the battery is inserted incorrectly.

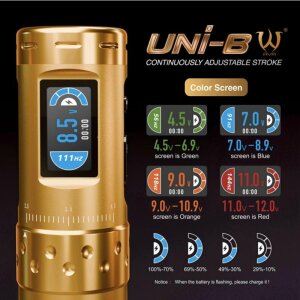

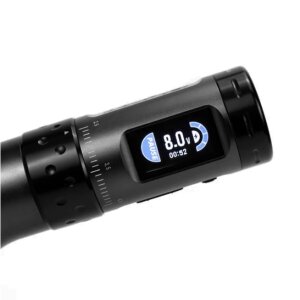

•High-resolution color display: Displays voltage, hertz, timing and battery level.
•Low battery warning: A flashing lightning symbol reminds you to charge the battery.
•Integrated recoil function: Generates an appropriate recoil depending on the skin condition to minimize skin damage.
•Non-slip handle: For a safe and comfortable grip.
•High-speed motor (10500 rpm): Powerful and allows penetration into the skin with lower voltage.
•Improved 10c power battery: Longer working time.
•Color-coded display: The color of the display shows the battery level.
Scope of delivery
•1x pen
•1x storage bag
•2x battery
•1x charger
•2x grip
•1x USB C charging cable
-
